Hardened thread milling cutter
Category: Products
Category: Hole processing series
Tool Type: Thread milling cutter
Product Description

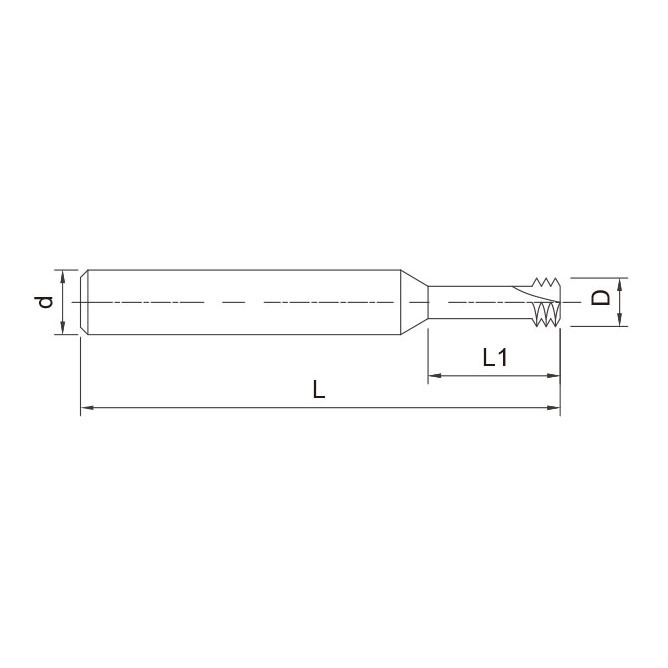

| Type No. | Thread | Pitch | Diameter | Effective length | Overall length | Shank Dia | Flutes |
| M | P | D | L1 | L | d | F | |
|
NHBM010P025A |
M1 |
0.25 |
0.73 |
2.3 |
50 |
4 |
3 |
|
NHBM012P025A |
M1.2 |
0.25 |
0.92 |
3.3 |
50 |
4 |
3 |
|
NHBM014P030A |
M1.4 |
0.3 |
1.05 |
3.2 |
50 |
4 |
3 |
|
NHBM016P035A |
M1.6 |
0.35 |
1.21 |
3.5 |
50 |
4 |
3 |
|
NHBM018P035A |
M1.8 |
0.35 |
1.4 |
4 |
50 |
4 |
3 |
|
NHBM020P040A |
M2 |
0.4 |
1.54 |
4.5 |
50 |
4 |
3 |
|
NHBM022P045A |
M2.2 |
0.45 |
1.65 |
5 |
50 |
4 |
3 |
|
NHBM025P045A |
M2.5 |
0.45 |
1.96 |
5.5 |
50 |
4 |
3 |
|
NHBM030P050A |
M3 |
0.5 |
2.42 |
7 |
50 |
4 |
3 |
|
NHBM035P060A |
M3.5 |
0.6 |
2.75 |
9 |
50 |
4 |
3 |
|
NHBM040P050A |
M4 |
0.5 |
3.4 |
8 |
50 |
4 |
3 |
|
NHBM040P070A |
M4 |
0.7 |
3.15 |
8.8 |
50 |
4 |
3 |
|
NHBM045P075A |
M4.5 |
0.75 |
3.5 |
11 |
50 |
4 |
3 |
|
NHBM050P050A |
M5 |
0.5 |
3.9 |
8 |
50 |
4 |
3 |
|
NHBM050P075A |
M5 |
0.75 |
3.9 |
8 |
50 |
4 |
3 |
|
NHBM050P080 |
M5 |
0.8 |
4 |
12 |
50 |
6 |
3 |
|
NHBM050P080A |
M5 |
0.8 |
3.95 |
12 |
50 |
4 |
3 |
|
NHBM060P050 |
M6 |
0.5 |
4.8 |
13 |
50 |
6 |
3 |
|
NHBM060P075 |
M6 |
0.75 |
5 |
13 |
50 |
6 |
3 |
|
NHBM060P100A |
M6 |
1 |
3.95 |
14 |
50 |
4 |
3 |
|
NHBM060P100 |
M6 |
1 |
4.75 |
13 |
50 |
6 |
3 |
|
NHBM080P075 |
M8 |
0.75 |
5.95 |
20 |
50 |
6 |
4 |
|
NHBM080P100 |
M8 |
1 |
5.9 |
20 |
60 |
6 |
4 |
|
NHBM080P050 |
M8 |
0.5 |
5.95 |
16 |
50 |
6 |
4 |
|
NHBM080P125 |
M8 |
1.25 |
5.95 |
20 |
60 |
6 |
3 |
|
NHBM100P100 |
M10 |
1 |
7.9 |
21 |
60 |
8 |
4 |
|
NHBM100P125 |
M10 |
1.25 |
7.95 |
21 |
60 |
8 |
4 |
|
NHBM100P150 |
M10 |
1.5 |
7.9 |
22 |
60 |
8 |
4 |
|
NHBM100P150L |
M10 |
1.5 |
8.2 |
25 |
75 |
10 |
4 |
|
NHBM120P100 |
M12 |
1 |
9.9 |
30 |
75 |
10 |
4 |
|
NHBM120P150 |
M12 |
1.5 |
9.9 |
30 |
75 |
10 |
4 |
|
NHBM120P125 |
M12 |
1.25 |
9.9 |
30 |
75 |
10 |
4 |
|
NHBM120P175 |
M12 |
1.75 |
9.9 |
28 |
75 |
10 |
4 |
|
NHBM140P200 |
M14 |
2 |
9.9 |
28 |
75 |
10 |
4 |
|
NHBM160P150 |
M16 |
1.5 |
11.9 |
35 |
75 |
12 |
4 |
|
NHBM160P200 |
M16 |
2 |
11.9 |
35 |
75 |
12 |
4 |
|
NHBM220P250 |
M22 |
2.5 |
15.9 |
50 |
100 |
16 |
6 |
|
NHBM240P300 |
M24 |
3 |
15.9 |
50 |
100 |
16 |
6 |
|
NHBM240P350 |
M24 |
3.5 |
15.9 |
50 |
100 |
16 |
6 |
| Cast iron,Carbon steel | Alloy steel,Tool steel | Tempered steel Prehardened steel |
Heat-treated steel | Heat-treated steel | Stainless steel | Aluminum alloy | Titanium alloy | Copper alloy |
|
（~22HRC） |
（25~35HRC） |
（35~45HRC） |
（45~55HRC） |
（55~65HRC） |
（~30HRC） |
（~150HB） |
（~32HRC） |
C11000 |
|
S50C/HT250/Q235 |
P20/H13/D2 |
NAK80/718H/FDAC |
SKD61/1.2343ESR |
SKD11/SKH51 |
SUS304/316/316L |
5052/6061/7075 |
Ti-6Al-4V |
B152C11000 |
| ▣ | ▣ | ◉ | ◉ | ▣ | ▣ | -- | ▣ | -- |
◉ 最适合 Most Suitable ▣ 适合 Suitable -- 不适合 Not Suitable
